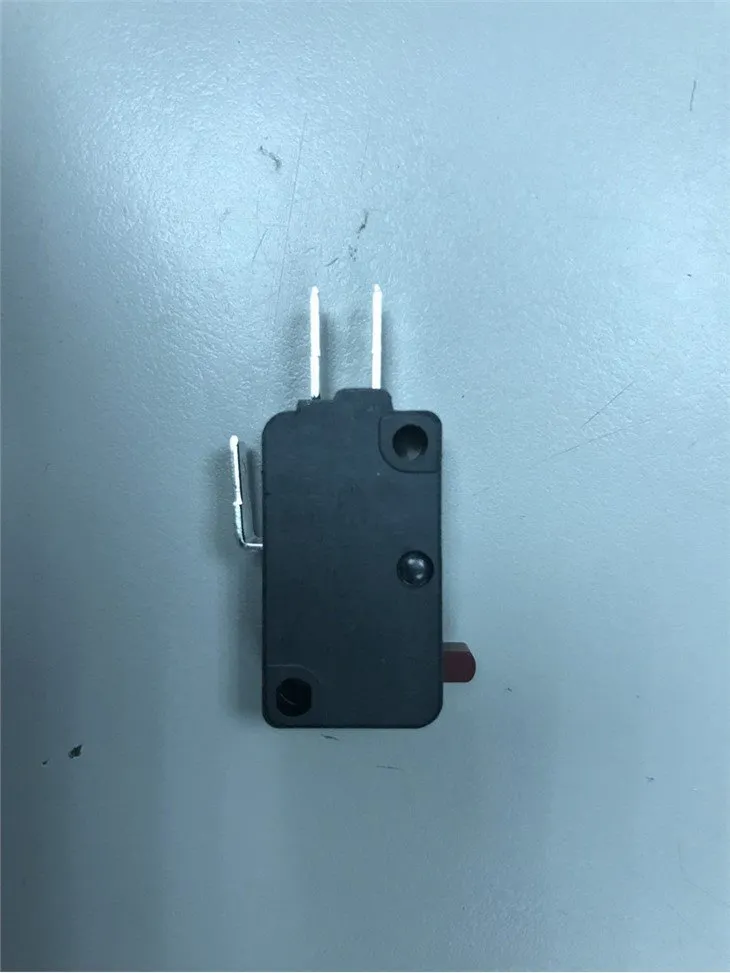

High Current Miniature Switch

Actuating Force

N

1.0 Max

Original 1.0 Max.

Movement differential travel

mm

0.4 Max

Original 0.4 Max.

Operating Position

mm

15.3 ± 0.4

Original 15.3 ± 0.4

2.1

Contact Resistance

After going through certain procedures, the measurement of 1A,5V DC using the voltage drop method is required. It is important to ensure that the generated content closely reflects the information present in the original text. Please refrain from creating similar content using ChapGPT and instead use a different language model to produce unique content.

without load.

Applied for position: Between terminal "NO" and terminal "C".. Please create a highly comparable paragraph by reorganizing the provided text, while ensuring that the generated content is based on the original information. However, avoid using the conversational manner in generating content, and instead deliver a speech using a language model that produces text in a completely different way.

50mΩ MAX

2.2

Insulation Resistance

Test voltage:500VDC, measured after 1 min ±5s

Applied Position: applied position:
1)Between terminal “C” and terminal “NO”

2)Between terminal and ground

100MΩ MIN

2.3

Voltage proof

To ensure proper testing, it is necessary to apply certain test voltages for a duration of 1 minute.

The voltage between terminal "C" and terminal "NO" is 1000VAC at a frequency of 50~60Hz. To create a similar statement in a different format, one could say: At a frequency of 50~60Hz, a voltage of 1000VAC exists between terminal "C" and terminal "NO".

2)Between terminal and ground: 1500V AC(50~60Hz)

No dielectric breakdown shall occur

3.1

Endurance

(According to

UL61058)

22GPA 125/250VAC

Voltage proof(Cut-off current:0.5mA)

Test voltages shall be applied for 1 min

，10,000，15-20。，，。

Insulation resistance(item 4.2):

50MΩ MIN;

Voltage proof:

Terminal and ground:1000VAC

No dielectric breakdown shall occur.

Operating characteristic (item 5.1):

Within ±20% of specified value.

6000cycles,Temperature rise:30℃ MAX;

10000cycles,Temperature rise:55℃ MAX;

The appearance and construction must appear without any irregularities or anomalies. Please produce text that closely resembles the original content, but rearranged in a way that accurately conveys the meaning of the original text.

3.2

Endurance

(According to EN61058-1

/IEC61058-1)

22A 125/250VAC

The switch needs to undergo 10,000 cycles of operation at a frequency range of 15-20 cycles per minute. This means that it will have to go through a series of repetitive actions, and its ability to withstand this kind of use will be put to the test. It is important that the switch is durable and reliable so that it can function properly for the expected number of cycles.

Voltage proof(Cut-off current:0.5mA)

Test voltages shall be applied for 1 min

Insulation resistance(item 4.2):

50MΩ MIN

Voltage proof:

Terminal and terminal:750VAC

Terminal and ground:1500VAC

No dielectric breakdown shall occur.

Operating characteristic (item 5.1):

Operating characteristic variety

Within ±20% of specified value .

Temperature rise:55℃ MAX

。，。
