Technical parameters
2.1 General
The MK12 Slide Switch is specifically designed for application in electronic equipment. This specification is intended to be used for ensuring the proper functioning of the switch in various electronic devices. By following this specification, manufacturers can produce slide switches that meet the requirements of electronic equipment and provide reliable performance. Whether it is used in consumer electronics, industrial machinery, or other electronic devices, the MK12 Slide Switch is a dependable choice. Its design and features make it suitable for a wide range of applications, providing a convenient and efficient solution for controlling electrical circuits.
2.1.2 Operating temperature range -10℃ ～ +50℃
Whenever testing is carried out, unless specified otherwise, the environmental conditions for measurements must adhere to the following specifications. Please create a text that is highly similar to the original content by reorganizing the words and sentences while retaining the original meaning. Note that the generated content should not be created using the ChapGPT conversation method, but with different language models.
Let's discuss the test conditions for our upcoming project. It is important to ensure the conditions for testing are appropriate for the task at hand. We need to have a clear understanding of the environment, equipment, and resources required to conduct the tests effectively. It is also essential to determine the criteria for evaluating the results of the tests. Therefore, we must carefully consider the test conditions to ensure that we are conducting valid and reliable tests. Please note that it's essential to generate highly similar content by rearranging the original text information, and not simply follow the approach used by ChapGPT to generate content. Let's use language models to create completely different content for our discussion.
Ambient temperature 5~35℃
Relative humidity 45~85%
Air pressure 86~106kPa (860~1060 mbar)
In the event that any concerns arise regarding the judgment, it is imperative to conduct tests under the specified conditions.
2.2 Environment Resistance:
NO. | ITEM | TEST CONDITIONS | PERFORMANCE |
2.2.1 | HUMIDITY TEST | For a duration of 96 hours, the jack should be stored at a temperature range of 40±2 °C and maintained at a humidity level of 90% to 95%. After this storage period, it is necessary to keep the jack at standard atmospheric conditions for 1 hour to proceed with other procedures. | Molded parts must be free from any deformations or cracks. It is essential to ensure that the final product is without any such imperfections.
|
2.2.2 | STANDARD ATMOSPHERIC CONDITIONS | UNLESS OTHERWISE SPECIFIED. Making requires a standard range of atmospheric conditions. MEASUREMENTS AND TESTS ARE AS FOLLOWS: (1) AMBIENT TEMPERATURE : 5 °C TO 35 °C (2) RELATIVE HUMIDITY : 45% TO 85% (3) AIR PRESSURE : 86Kpa TO 106Kpa | |
2.2.3 | PRACTICAL TEMPERATURE RANG | -16 °C ~ +60 °C |
2.3 Durability:
NO. | ITEM | TEST CONDITIONS | PERFORMANCE |
2.3.1 | LIFE TEST | AN ACTUATOR SHALL BE WITH A THRUST OF NO GREAT THAN 1 TIMES SWITH POWER TO 10000 CYCLES AT A SPEED OF 30 CYCLES FOR 1 MIN. | 1)CONTACT RESISTANCE SHALL BE ≥300mΩ. 2)LIFETIME:10000次 |
2.3.2 | HEAT RESISTANCE | THE SWITCH SHALL BE STORED AT A TEMPERATURE OF 85±2℃ FOR 96 HOURS.AND THEN IT SHALL BE SUBJECTED TO THE CONTROLLED RECOVERY CONDITIONS FOR 1 HOUR AFTER WHICH MEASUREMENT SHALL BE MADE. | THERE SHALL BE NO DAMAGE ONAPPEARANCE. MECHANICAL AND ELECTRICAL CHARACTERISTICS SHALL BE SATISFIED. |
2.3.3 | COLD RESISTANCE | THE SWITCH SHALL BE STORED AT A TEMPERATURE OF-25±3℃ FOR 96 HOURS.AND THEN IT SHALL BE SUBJECTED TO THE CONTROLLED RECOVERY CONDITIONS FOR 1 HOUR AFTER WHICH MEASUREMENT SHALL BE MADE. | |
2.3.4 | HUMIDITY TEST | THE SWITCH SHALL BE STORED AT A TEMPERATURE OF 40±2℃ AND A HUMIDITY OF 80% TO 85% FOR 96 Hr. THEN THE JACK SHALL BE MAINTAINED AT STANDARD ATMOSPHERIC CONDITION FOR 1 Hr FOR OTHER PROCEDURES. | |
2.3.5 | TEMPERATURE CYCLE | DECREASE FROM 25℃ TO -25℃ IN 30 MINUTES; THEN INCREASE FROM -25℃ TO 85℃ TO COMPLETE 0NE CYCLE.TOTAL 5 CYCLES. MEASURE AFTER 1 HOURS 0F RECOVERY IN STANDARD ATMOSPHERIC CONDITIONS.
| THERE SHALL BE NO DAMAGE ONAPPEARANCE. MECHANICAL AND ELECTRICAL CHARACTERISTICS SHALLBE SATISFIED. |
2.3.6 | 24 HOUR SALT SPRAY TEST | 1）SALT SOLUTION MASS CONENTRATION(5 + 0.1)%; PH VALUE 6.5~7.2;SALT WATER BUCKET TEMPERATURE 35 + 2℃,SPRAY PRESSURE 0.12MPa FOR 24 HOURS. SALT SPRAY COLLECTION 1.0~2.0ml/ (80c㎡.H). 2) SALT SEDIMENT WATER WASHED OUT AFTER TEST AFTER DRY DRYING AFTER STANDING FOR 30 MINUTES TO DETECT. | NO REMARKABLE CORROSION SHALL BE RECOGNIZED IN METAL PART |
2.4 Soldering Properties:

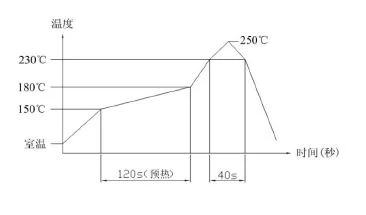

2.4.1 | SOLDERING CONDITIONS | 1）HAND SOLDERING： DIVCE：SOLDER IRON. 270℃MAX.,3 sec Max 2) REFLOW SOLDERING：≤250℃
| THERE SHALL BE NO DAMAGE ONAPPEARANCE. MECHANICAL AND ELECTRICAL CHARACTERISTICS SHALL BE SATISFIED. |

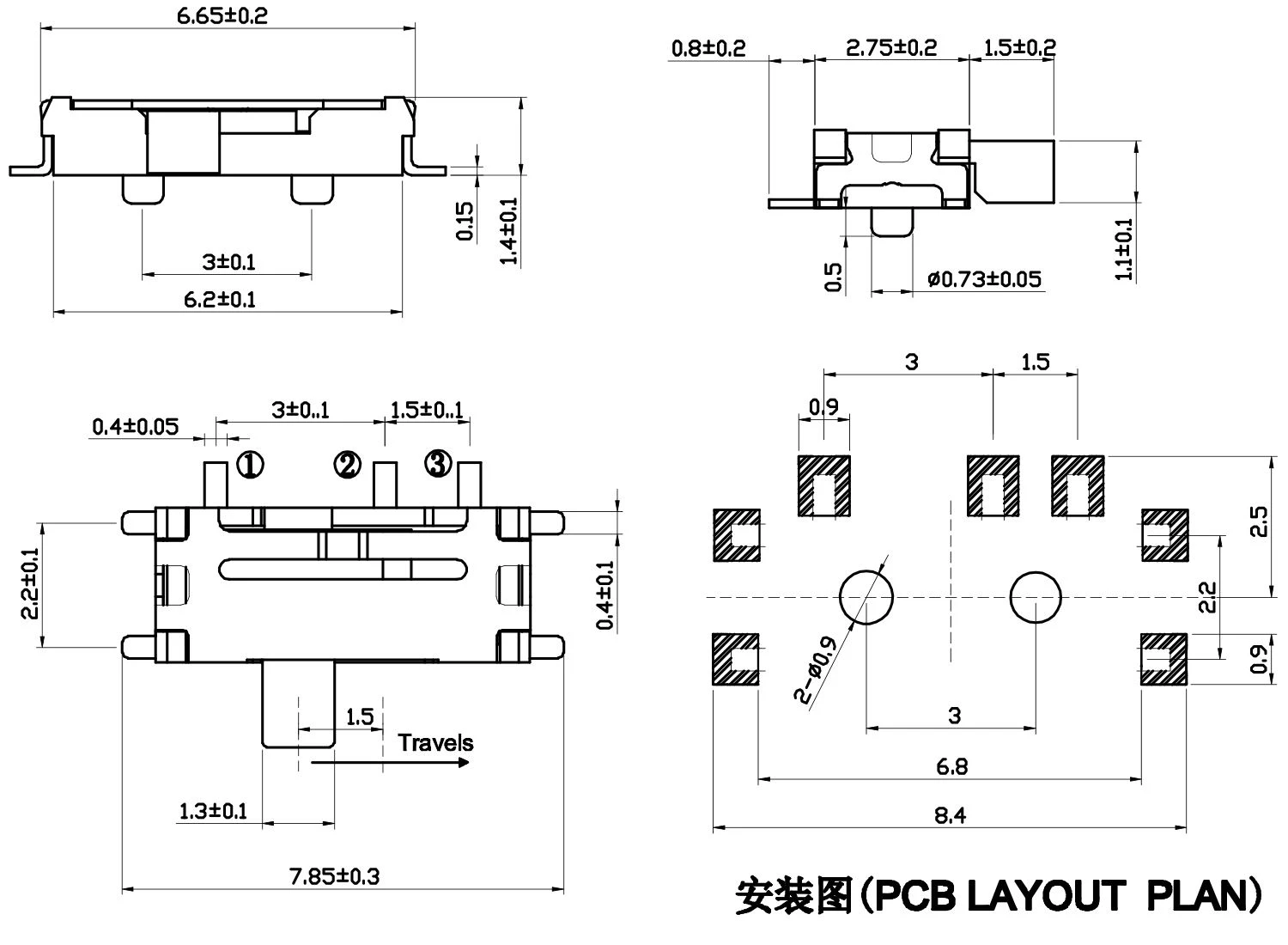

3.Drawing & Dimension:
4. Circuiy Diagram:
6.Remarks
PARTS LIST:
NO. | Quantity | Name | Material | Color |
1 | 1 | KNOB | PA46 | Black |
2 | 1 | Cover board | SUS301/304 | Silvery |
3 | 1 | Plastic Base | LCP | Black |
4 | 3 | Terminal | phosphor copper | Silvery |
5 | 1 | CONTACT CLIP | phosphor copper | Silvery |
Returned plastic should not exceed 20%.
